MFD MARKERS vs QR-CODES

Our augmented reality solutions are based on our novel patented high performance computer vision system and digital coding technology. Together they form a "Fiducial Marker System".

'MFD' markers are *not* QR-codes. QR-codes are a legacy technology that unfortunately became the standard for 2D data to be read with smartphones. QR-codes benefit from being globally readable but suffer from difficulty reading them, the user has to get close and typically pause for a few seconds to read the data. With MFD markers your smartphone can detect up to hundreds of markers reliably at once at up to 25x the distance.

Leave QR-codes behind and enter the future!

Conventional Tracking Technology

Barcode

Linear Barcodes contain single number information

(SKU number typically)

Universal Product Codes on goods

QR Code

2D Barcodes can contain more complex information

URLs and links to Webpages
Images

RFID SCANNING

RFID uses a radio signal to communicate between a tag and a reader

Passive RFID gets power from the RF signal to power the tag

(NFC in credit cards is similar)

Active RFID tags have their own internal power source

OUR MFD MARKERS

MFD markers are our enabling technology that they are higher performance special patterns and real time algorithms to detect them in live video. They are based on a combination of cutting edge image processing technology and telecom level data algorithms to yield a high reliability across several detection metrics.

ProductionAR: MFD Marker

MFD Markers visible at 10 times greater distances than QR-Codes

MFD Marker:26.8M vs QR-Code: 3.6M

QR-codes to MFD markers comparison333(1)

QR-codes to MFD markers comparison333(2)

QR-codes to MFD markers comparison333(3)

02:24

Comparison between QR-Codes and the MFD6am Fiducial Marker from ProductionAR

An "eye chart" of 9 patterns each 1.75" wide is viewed with 4 different iOS apps on an iPhone 6S. Six QR-codes of varying density and 3 MFD6am markers are evaluated for how far away they can detect the code.

MFD fiducial demo June 12 2016

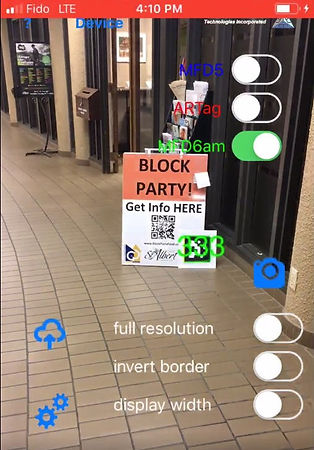

Demonstration of the 'MFD Fiducial Marker System'. An iOS app detects marker patterns and draws a green square and marker ID number over marker in image. Screen capture of iPhone 6s running at a video resolution of 1920x1080 (1080p). Millennium Three Technologies Inc June, 2016
